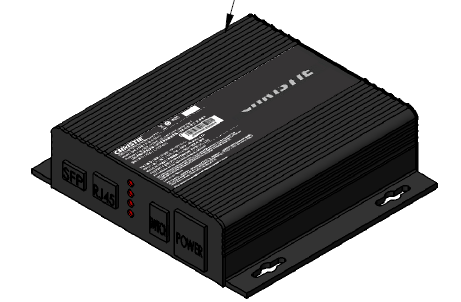

LED Single-Mode Fiber Extender
LED Single-Mode Fiber Extender
Christie®

LED Single-Mode Fiber Extender

154-105107-01
Regular price $414.00 $0.00 Unit price per
Ground shipping based on weight.

Enhance your network connectivity with the LED Single-Mode Fiber Extender, designed for high-speed, long-distance optical fiber transmission. Supporting single-mode dual-core optical fiber with an LC interface, this extender provides seamless data communication over distances up to 1500 meters.

Key Features:

  • High-Speed Transmission – Supports single-mode fiber transmission up to 1.5 km
  • Plug & Play – No driver required, works immediately after connection
  • LED Indicators – Power, FX/ACT, TP/ACT, and Data indicators for easy monitoring
  • Reliable Connectivity – Features one cable interface & one fiber interface
  • Power Supply 100~240V AC, 50/60Hz input voltage

Technical Specifications:

  • Model: EOC410
  • Fiber Type: Single-mode dual-core with LC interface
  • DC Output Voltage: 5V, 5A
  • Current Consumption: Max. 0.7A
  • Operating Conditions: Standard industrial environment
  • LED Indicators:
    • Power – Indicates device is powered on
    • FX/ACT – Shows fiber communication status
    • TP/ACT – Shows network cable status
    • Data – Indicates active data transmission

**This is a certified recondition product and may have minor cosmetic imperfections. All laser illumination projectors have been used and do not offer full illumination performance.
